Diplopia after middle meningeal artery embolization for chronic subdural hematoma: A case report
Feng Zhao, Chun-Hai Su, Shun-Xin Hu, Lei Feng, Department of Neurosurgery, Jining NO.1 People's Hospital Affiliated to Shandong First Medical University, Shandong Academy of Medical Sciences, Jining 272000, Shandong Province, China
Feng Zhao, Chun-Hai Su, Shun-Xin Hu, Lei Feng, Shandong Provincial Key Medical and Health Laboratory of Neuroinjury and Repair, Jining 272000, Shandong Province, China
ORCID number: Lei Feng (0000-0002-6769-0638).
Author contributions: Zhao F and Hu SX contributed to manuscript drafting; Feng L reviewed the literature; Su CH was responsible for the revision of the manuscript for important intellectual content; all authors issued final approval for the version to be submitted.
Informed consent statement: The patient and his family provided their written informed consent and agreed to the publication of this case report.
Conflict-of-interest statement: All authors declare that there is no conflict of interest.
CARE Checklist (2016) statement: The authors have read the CARE Checklist (2016), and the manuscript was prepared and revised according to the CARE Checklist (2016).
Open Access: This article is an open-access article that was selected by an in-house editor and fully peer-reviewed by external reviewers. It is distributed in accordance with the Creative Commons Attribution NonCommercial (CC BY-NC 4.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited and the use is non-commercial. See: https://creativecommons.org/Licenses/by-nc/4.0/
Corresponding author: Lei Feng, Chief, Department of Neurosurgery, Jining NO.1 People's Hospital Affiliated to Shandong First Medical University, Shandong Academy of Medical Sciences, No. 6 Jiankang Road, Rencheng District, Jining 272000, Shandong Province, China. flneuro@163.com
Received: February 24, 2025
Revised: March 30, 2025
Accepted: April 25, 2025
Published online: August 16, 2025
Processing time: 102 Days and 4.7 Hours

Abstract
BACKGROUND

Middle meningeal artery embolization (MMAE) is emerging as a promising treatment for chronic subdural hematoma (CSDH), serving both as an adjunct to surgery and as a primary therapeutic option depending on patient presentation. Due to its low recurrence rate and minimal complications, MMAE has gained increasing acceptance among clinicians in recent years. This report presents a case of diplopia following MMAE due to the presence of a potential anastomotic artery, aiming to enhance awareness of this complication.

CASE SUMMARY

A 60-year-old male patient presented with a headache following head trauma, and cranial computed tomography revealed a left-sided CSDH. The patient underwent left MMAE; however, polyvinyl alcohol particles inadvertently flowed into the lacrimal artery through an anastomotic artery, resulting in diplopia due to impaired abduction of the left eye. The diplopia resolved by postoperative day 40. The patient’s headache resolved by postoperative day 7, and the hematoma completely resolved by postoperative day 108.

CONCLUSION

Potential anastomotic arteries in the middle meningeal artery (MMA) can lead to serious complications. Superselective angiography of the MMA or its branches prior to embolization is essential. Performing embolization distal to potential anastomotic sites can reduce risks, and the presence of an anastomosis may warrant coil embolization or termination of the procedure.

Key Words: Chronic subdural hematoma; Middle meningeal artery; Embolization; Diplopia; Anastomotic artery; Case report

Core Tip: Middle meningeal artery embolization is emerging as a potential treatment for chronic subdural hematoma. However, the presence of anastomotic arteries in the middle meningeal artery can complicate the procedure, potentially leading to severe complications if not identified preoperatively.



INTRODUCTION

Chronic subdural hematoma (CSDH) is a common neurosurgical condition characterized by headache and limb weakness due to hemorrhage accumulation beneath the dura mater, exerting pressure on brain tissue. Traditional surgical treatments are associated with high recurrence rates. In recent years, middle meningeal artery embolization (MMAE) has gained traction due to its lower recurrence rates and fewer complications.

We present a case of diplopia following MMAE for CSDH. Informed consent was obtained from the patient, and the ethics committee waived approval for this report. To our knowledge, this is the first study to provide detailed insights into the development of diplopia after MMAE for CSDH. Shotar et al[1] reported two cases of transient diplopia associated with abducens nerve palsy following MMAE, while Raviskanthan et al[2] documented a case of bilateral abducens nerve palsies after bilateral MMAE. However, neither study thoroughly elucidated the underlying mechanisms. This case report details a patient with a clear risk of anastomosis, as demonstrated by imaging.

CASE PRESENTATION
Chief complaints

A 67-year-old male presented with a mild traumatic brain injury and a progressively worsening headache over 40 days.

History of present illness

The patient sustained a head injury from a bicycle accident 40 days prior. One week before admission, he developed a headache that gradually worsened, accompanied by nausea and vomiting one day prior. Cranial computed tomography (CT) revealed a left-sided chronic subdural hematoma.

History of past illness

The patient underwent lumbar spine surgery 10 years ago and had a history of alcohol consumption and smoking for over 40 years.

Personal and family history

No significant personal or family medical history.

Physical examination

The patient’s temperature was 36.3 °C, heart rate was 70 beats per minute, and blood pressure was 164/108 mmHg. No significant abnormalities were noted on physical examination.

Laboratory examinations

No abnormalities were detected in laboratory tests.

Imaging examinations

Cranial CT revealed a left-sided chronic subdural hematoma (Figure 1A), with midline shift of 5 mm to the right and a maximum hematoma thickness of 13 mm.

Figure 1

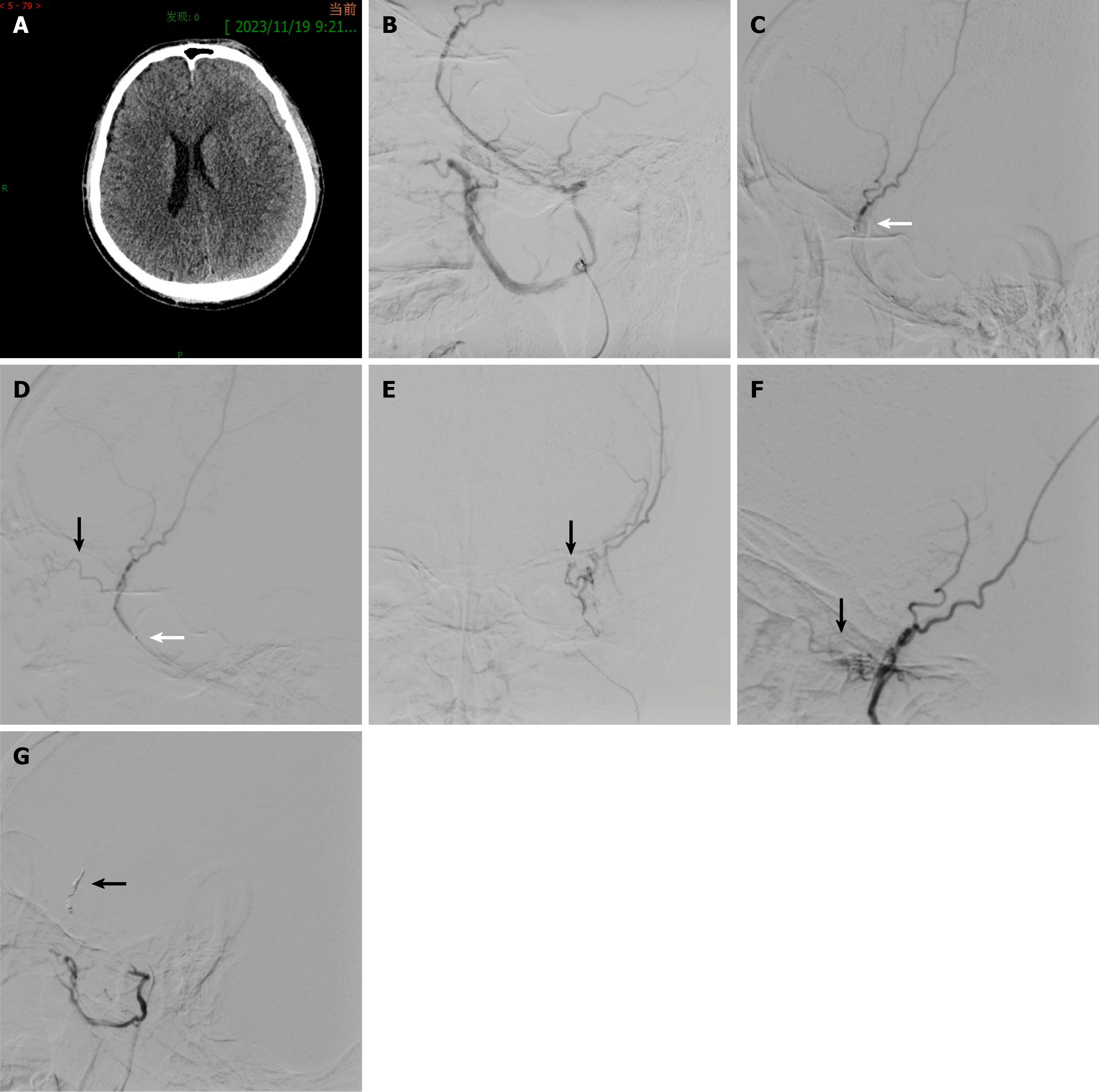

Figure 1 Computed tomography and angiography. A: Brain computed tomography scan shows left chronic subdural hematoma; B: Middle meningeal artery (MMA) angiography revealed absence of detectable anastomotic artery along the anterior trunk; C: The tip of the microcatheter (white arrow) was placed distal to the main trunk of the anterior branch of the MMA for polyvinyl alcohol (PVA) injection; D: Lateral imaging of the microcatheter tip (white arrow) retracted due to intraoperative patient movement, revealing the anastomotic artery (black arrow) upon PVA injection; E: Anteroposterior view of PVA flowing through the long, tortuous sphenoidal artery (black arrow) to the lacrimal artery, which supplies the outer superior quadrant of the orbit; F: Reflux of PVA into the anastomotic artery (black arrow) during reinjection; G: Post-embolization contrast showing complete occlusion of the anterior and posterior branches of the MMA, with coils visible in the anterior branch (black arrow).
FINAL DIAGNOSIS

The patient was diagnosed with left-sided traumatic chronic subdural hematoma based on clinical history and imaging findings.

TREATMENT

Given the favorable clinical condition and moderate hematoma volume, the patient underwent left MMAE under local anesthesia. Angiography of the left common carotid artery revealed that the ophthalmic artery originated from the internal carotid artery, while the middle meningeal artery (MMA) arose from the internal maxillary artery (Figure 1B). Pre-embolization three-dimensional angiography showed no definitive anastomotic artery between the internal and external carotid arteries. A microcatheter (Echelon-10; ev3 Neurovascular, Irvine, CA, United States) was advanced into the anterior branch of the MMA, and polyvinyl alcohol (PVA) particles (150–350 μm; Hangzhou Alicon Pharm SCI & TEC CO., LTD., China) were injected (Figure 1C). During PVA injection, patient movement caused the microcatheter tip to retract, revealing an anastomotic artery from the MMA to the orbit (Figure 1D and E). The microcatheter was repositioned above the anastomotic artery, but PVA refluxed into the anastomotic artery again (Figure 1F). Three coils were then deployed in the MMA near the anastomotic artery, followed by PVA embolization of the posterior branch until complete occlusion of the anterior and posterior branches was achieved (Figure 1G).

OUTCOME AND FOLLOW-UP

The patient developed diplopia immediately postoperatively, with impaired abduction of the left eye. No blindness, blurred vision, or facial sensory deficits were noted. The patient was treated with oral methylcobalamin (0.5 mg three times daily) combined with ocular motility rehabilitation training. Complete resolution of diplopia was achieved after 40 days of this therapeutic regimen. The headache resolved by postoperative day 7, and the hematoma completely resolved by postoperative day 108.

DISCUSSION

CSDH is one of the most common central nervous system disorders, with an annual incidence of 2–20 per 100000 individuals[3,4]. Its prevalence is increasing due to aging populations and the widespread use of antithrombotic agents[5]. Surgical evacuation, through burr-hole drainage or open craniotomy, and supportive medical care are the standard treatments for symptomatic chronic subdural hematoma[6]. But traditional treatments are associated with recurrence rates of 9%–33%[7]. In recent years, MMAE has emerged as a promising treatment for CSDH, targeting the middle meningeal artery (MMA), which plays a critical role in CSDH pathogenesis. This treatment has been proposed as a primary therapy, an adjunct to surgical drainage, and for recurrent CSDH [8-12]. However, the presence of anastomotic arteries poses significant risks during MMAE.

A feared complication of MMAE is the inadvertent embolization of the ophthalmic artery or facial nerve artery through anastomotic channels, potentially leading to blindness or facial paralysis[13-16]. Two anastomotic pathways exist: A short, straight meningolacrimal artery traversing the foramen of Hyrtl and a long, tortuous sphenoidal artery passing through the superior orbital fissure. In our patient, intraoperative imaging revealed a long, tortuous anastomotic artery supplying the lacrimal artery, consistent with a type II vascular pattern as classified by Hayreh[17]. We hypothesize that PVA particles embolized the blood supply to the lateral rectus muscle and its abducens nerve, resulting in abductor dysfunction.

This complication underscores the importance of detecting anastomotic arteries prior to embolization. Although pre-embolization angiography of the common carotid artery was performed, the anastomotic artery was not initially visualized. During the procedure, patient movement caused the microcatheter to retract, revealing the anastomotic artery upon PVA reinjection. Despite repositioning the microcatheter, PVA still refluxed into the anastomotic artery. Consequently, we ultimately employed coil embolization as the definitive treatment strategy. Shotar et al[1] reported two cases of transient diplopia secondary to abducens nerve palsy following MMAE. Notably, neither case demonstrated angiographic evidence of anastomoses between the MMA and ophthalmic artery or orbital branches. However, in one patient, the marginal tentorial artery originated from the MMA, which may have contributed to the neurological deficit. While the authors did not provide detailed procedural specifics regarding embolic materials, they suggested that coil embolization or distal selective embolization could mitigate risks associated with such vascular variations. Raviskanthan et al[2] described a case of bilateral abducens nerve palsies following MMAE using 300-500 μm embosphere particles, though the exact mechanism remained unclear. The authors postulated microvascular occlusion by embolic particles as a potential etiology. In contrast, our case provided direct intraprocedural evidence of particle migration into dangerous anastomoses. Although we selected smaller PVA particles (150-350 μm) to achieve more distal MMA branch occlusion, current evidence does not conclusively demonstrate that smaller particles increase the risk of anastomotic penetration. We emphasize that meticulous angiographic identification of potential dangerous anastomoses - particularly through superselective MMA branch catheterization - remains paramount for procedural safety. This case highlights the need to position the microcatheter distal to potential anastomotic sites and to employ segmental catheter withdrawal strategies to minimize reflux. If an anastomotic artery is identified, coil embolization or termination of the procedure should be considered.

Given that the diplopia resulted from compromised vascular supply to the lateral rectus muscle and its abducens nerve due to embolization - a condition with no specific pharmacological treatment - we initiated a therapeutic regimen combining oral methylcobalamin with ocular motor rehabilitation training. The patient achieved complete resolution of diplopia at 40-day follow-up. While spontaneous recovery can occur in partial abducens nerve palsy, the observed clinical improvement suggests methylcobalamin may have provided beneficial neurotrophic support during the recovery process.

CONCLUSION

Potential anastomotic arteries in the MMA can lead to serious complications. Superselective angiography of the MMA or its branches prior to embolization is essential. Embolization should be performed distal to potential anastomotic sites, and the presence of an anastomosis may warrant coil embolization or termination of the procedure.
