Development and validation of a nomogram for predicting postoperative venous thromboembolism risk in patients with hepatocellular carcinoma

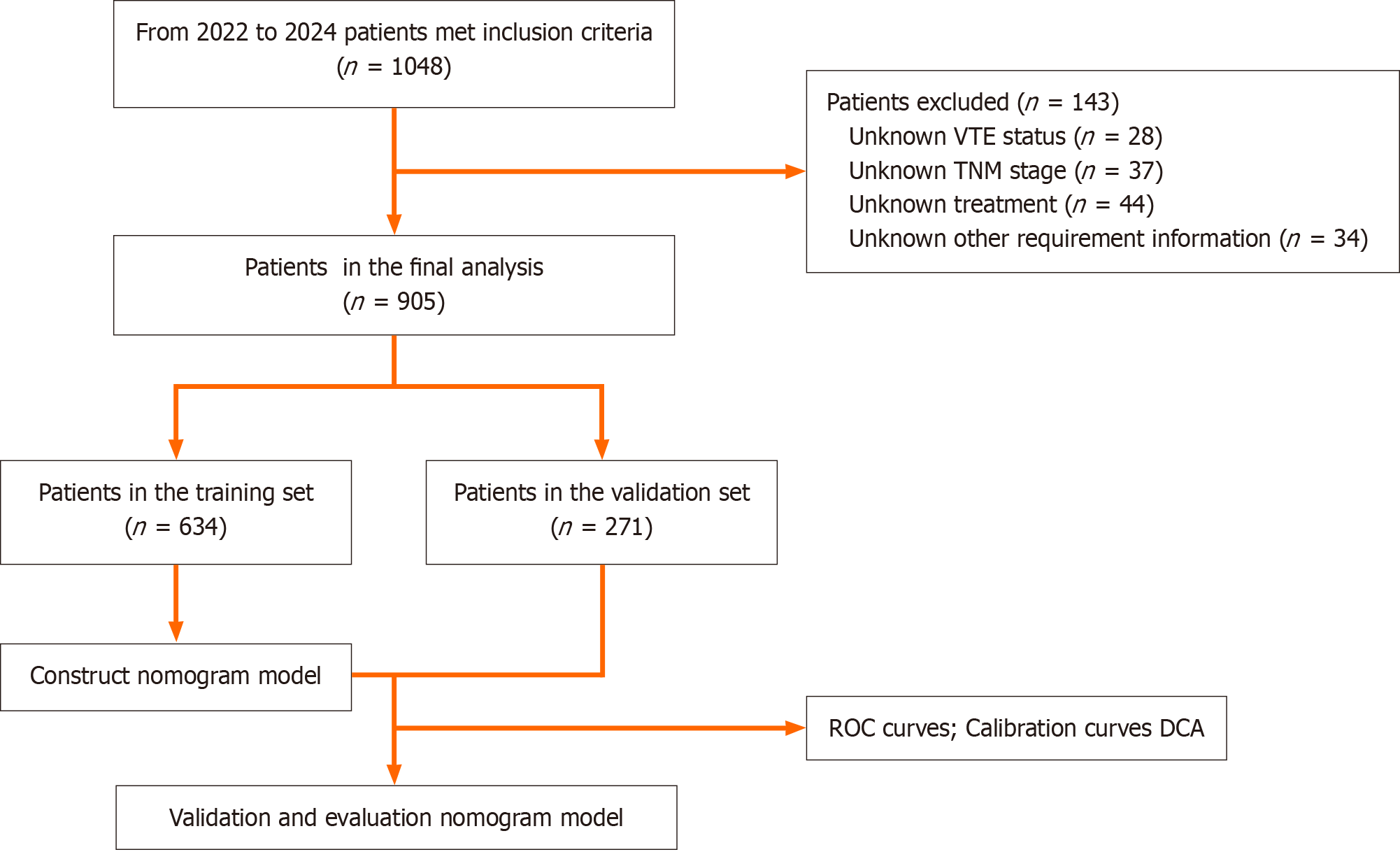

Figure 1 Flow chart of the patients enrolled in the final study cohorts. VTE: Venous thromboembolism; TNM: Tumor-node-metastasis; DCA: Decision curve analysis; ROC: Receiver operating characteristic.

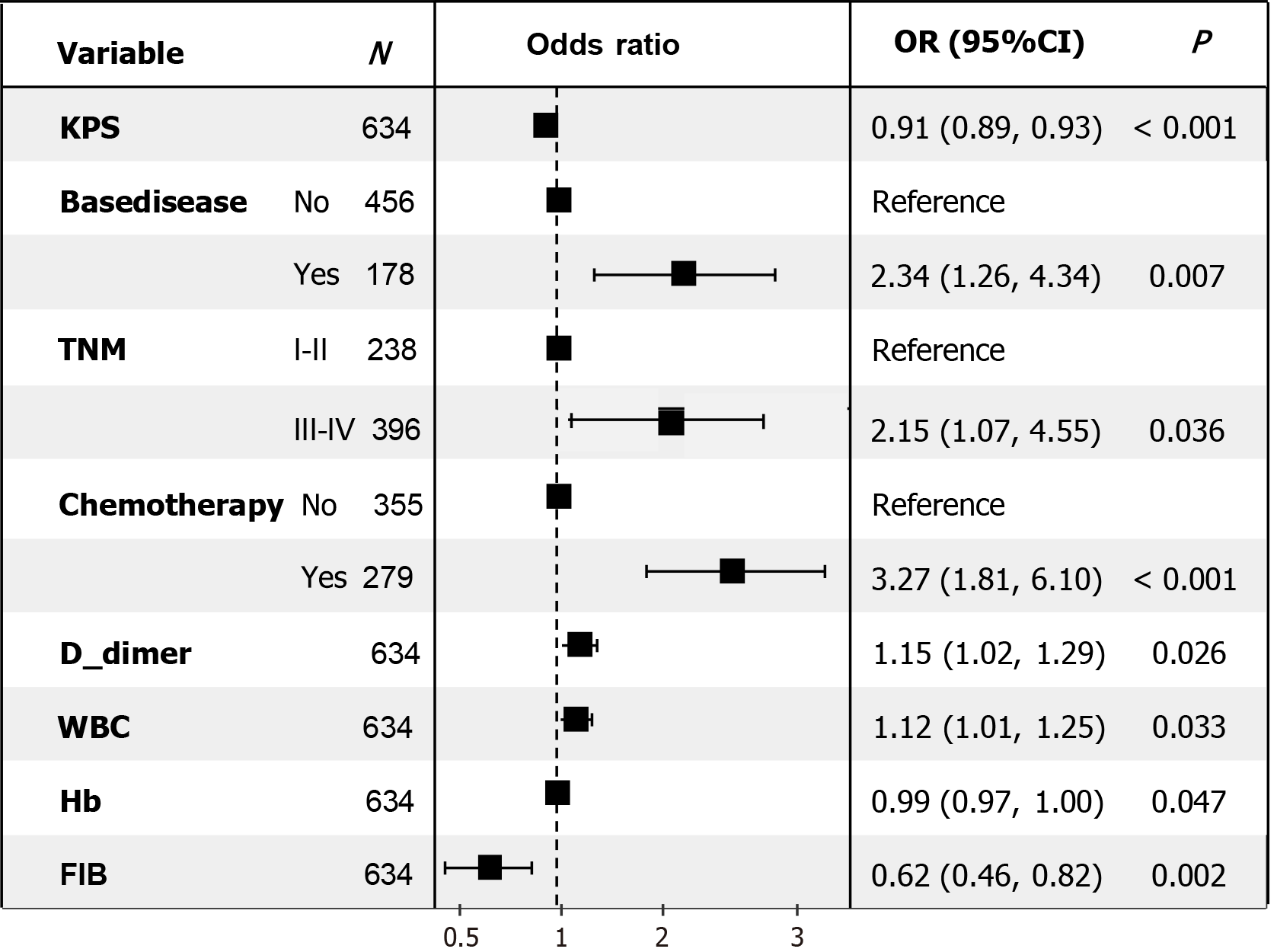

Figure 2 Multivariate logistic regression analysis of venous thromboembolism risk factors in the training cohort. KPS: Karnofsky Performance Scale; TNM: Tumor-node-metastasis; WBC: White blood cell count; Hb: Hemoglobin; FIB: Fibrinogen; OR: Odds ratio; CI: Confidence interval.

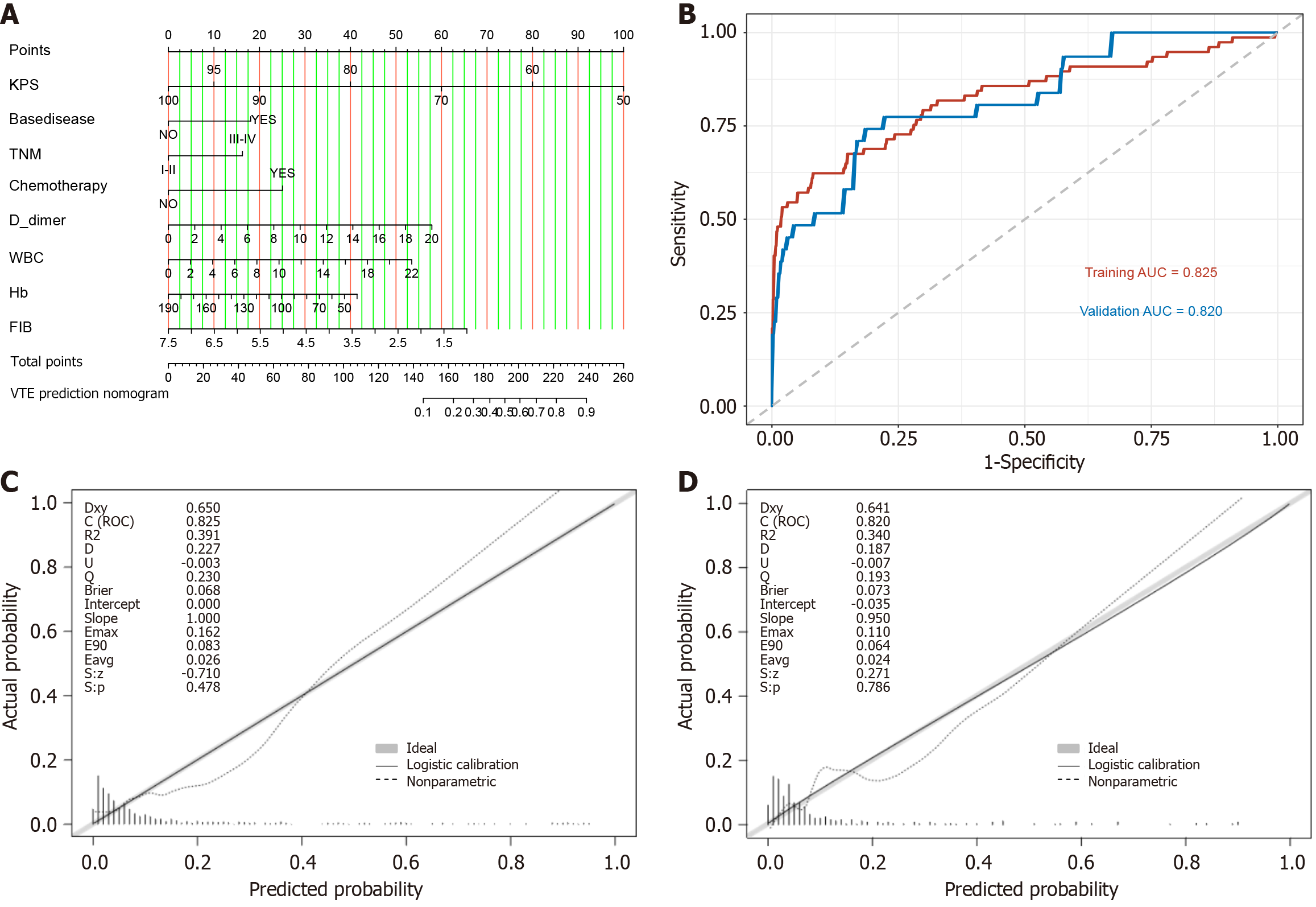

Figure 3 Construction and validation of the model. A: Nomogram for predicting the risk of venous thromboembolism in patients; B: Receiver operating characteristic curve of the nomogram for predicting venous thromboembolism risk in the training cohort and validation cohort; C: Training cohorts’ risk of venous thromboembolism nomogram correction chart; D: Validation cohorts’ risk.

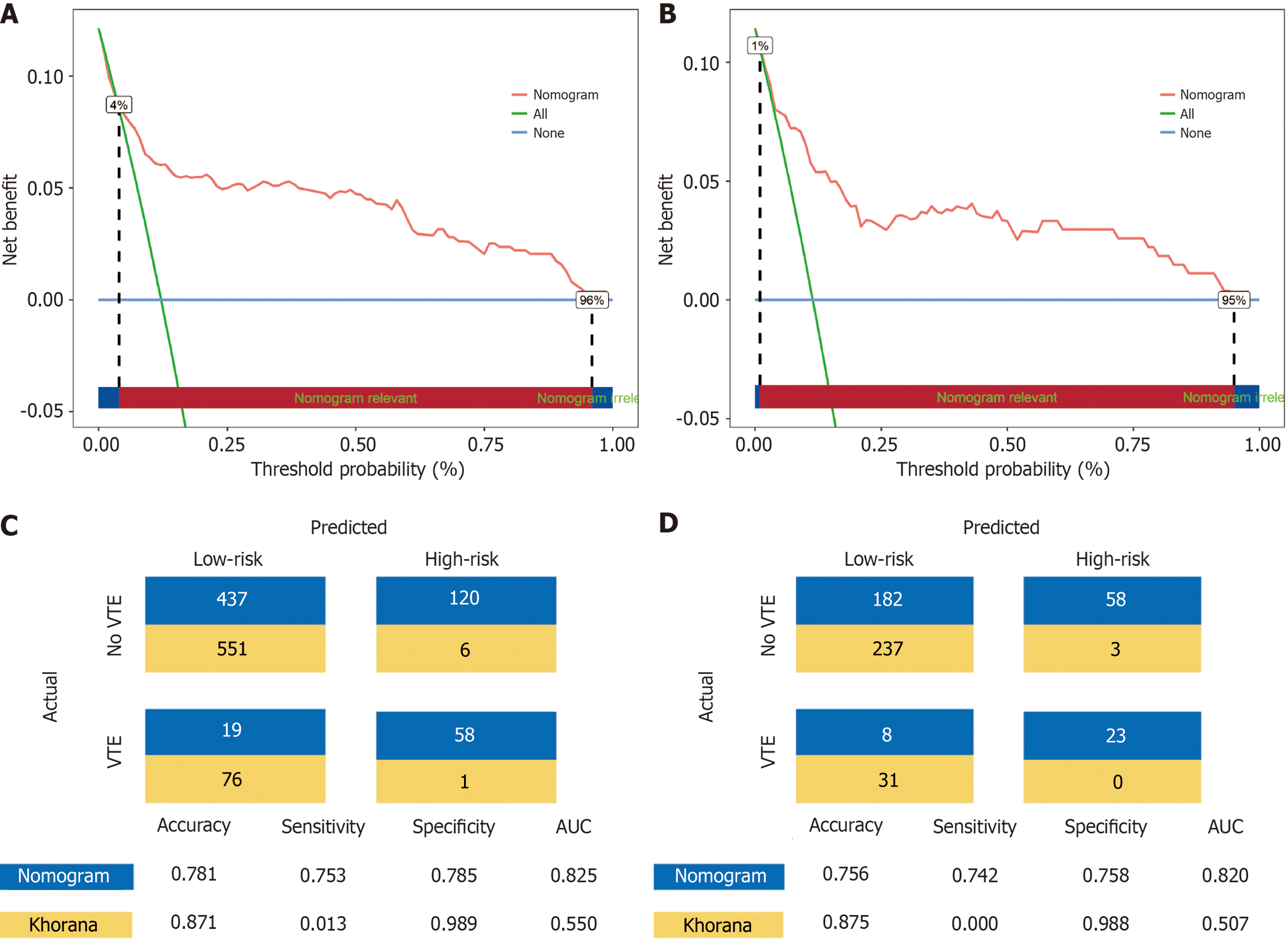

Figure 4 Decision curve analysis curve of the graph model. A: Training cohort; B: Validation cohort; C: Training cohort. Comparison of the nomogram model with Khorana; D: Validation cohort. VTE: Venous thromboembolism; AUC: Area under the curve.
